Auto Frequency Tracking Circuit PCB Ultrasonic Power Motherboard For Driving Cleaning Tank 4PCS 60W Transducer

Brand Name : HX

Model Number : HX-TCPCB-025

Certification : CE RoHS

Place of Origin : China

MOQ : 2 pieces

Price : $38-300

Payment Terms : T/T, Western Union

Supply Ability : 1500000 Piece/Pieces per Month piezoelectric ceramic

Delivery Time : 5-8 working days

Packaging Details : Carton 1) Custom packaging is accepted. 2) Customized foam protection

Type : Generator Circuit Board

Voltage : 110V/220V

Frequency : 40khz

Power : 180W

Product Size : 135*95*39mm

Weight (KG) : 0.3

Warranty : 1 year

Contact Now

Auto Frequency Tracking Circuit PCB Ultrasonic Power Motherboard For Driving Cleaning Tank 4PCS 60W Transducer

Ultrasonic generator PCB based on ultrasonic cleaning workpiece, the ultrasonic generator PCB are allowing the particles attached to the workpiece, oil and other mechanical vibration with the ultrasound off or dissolved or emulsified and so on, to achieve the purpose of cleaning the workpiece.

Ultrasonic Cleaning Equipment Ultrasonic parts of divided into two parts; one ultrasonic transducer, said ultrasonic vibration (or head); the other is the ultrasonic generator, ultrasonic transducer is the ultrasonic generator is converted to electrical signals provided by the mechanical vibration.

Performance characteristics:

.Using IGBT full bridge phase shift technology, constant power output;

.Automatically find suitable frequency points, and the speed response is very

fast.

.Higher power output and ultrasonic effect.

.25khz-40khz frequency adjustable.

Protective function:

1.Current load protection, limiting the current within a safe range.

2. Overheating protection, the current will be reduced automatically when the

temperature reaches 80 degrees.

3. Adopt matching cooling fan.

4. Use 50% power soft start to better protect the circuit board.

FEATURES

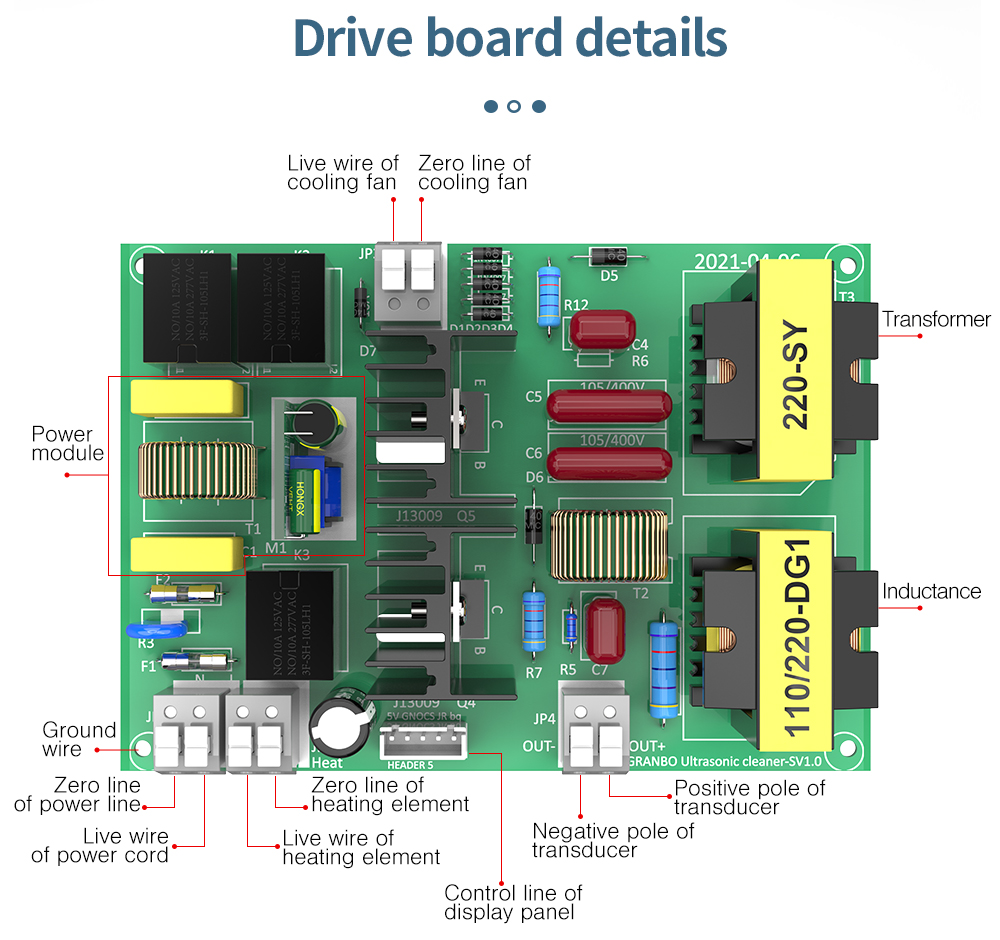

Auto Frequency Tracking Circuit PCB Ultrasonic Power Motherboard For Driving Cleaning Tank 4PCS 60W Transducer

Auto Frequency Tracking Circuit PCB Ultrasonic Power Motherboard For Driving Cleaning Tank 4PCS 60W Transducer Images
